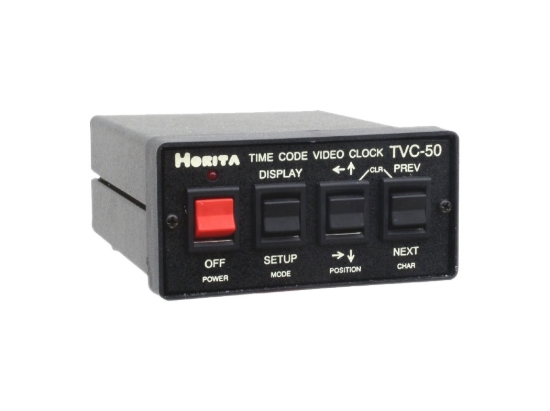

TVC-50 Time Code Video Clock

The TVC-50 reads SMPTE LTC time code and provides a display overlay of time and date onto SD NTSC or PAL analog composite video based on the time and user bit value and date from an internal clock/calendar. The TVC-50 provides numerous time and date display formats and is an ideal video time/date display device for use with the HORITA UTG-50 or GPS-MTG2 master SMPTE time code generator.
*
*
$449.00

The TVC-50 reads SMPTE LTC time code and provides a display overlay of time and date onto SD NTSC or PAL analog composite video based on the time and user bit value and date from an internal clock/calendar. The TVC-50 provides numerous time and date display formats and is an ideal video time/date display device for use with the HORITA UTG-50 or GPS-MTG2 master SMPTE time code generator.

  • Make window dub copies with various time/date formats;
  • Time displays range from simple displays of hours/minutes, up to hours/minutes/seconds/tenths-second, as well as a display of the input SMPTE time code and user bit values;
  • Date displays range from simple month/year formats, to day-of-week/month/day/century-year.
  • Various characters, such as space, hyphen, slash, etc., can be inserted as field delimiters (digit seperators).
  • Video "downcounter" mode provides automatic display of 30 or 60 minute downcount to zero.
  • Can also be used as a source ID generator to display up to 9 lines of 20 characters each. The source ID information as well as all setup data is retained in non-volatile memory, and can be displayed along with the time and date.
  • The TVC-50 reads SMPTE time code and provides a video display of time and date, based on the time an user bit value of the SMPTE time code input or on the time and date from an internal clock/calendar.
  • Selectable character attributes, for white/black, contrast, background on/off, flashing on/off, and horizontal and vertical size and position control.
  • Operates with SD NTSC RS-170A or PAL 625/50 analog composite video.
  • Outputs 2 volt p-p reshaped SMPTE time code for passing on to other units.
  • Operates from +9 to +13 volts DC for portable use in the field. Includes 9 volt AC adapter.
  • Rugged aluminum desktop enclosure measures 1.75"high, 4.7"long, 3.8"wide.
  • Also available in standard 19" Rackmount and Horita 7.5" "Short Rack" packages.
