GPS- Based Time Code and Video

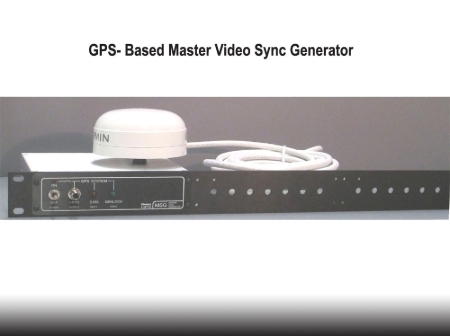

GPS-MSG GPS- Based Master Video Sync Generator
The GPS-MSG is a multiple output SD RS-170A analog composite video blackburst and video sync signal generator that is genlocked to the atomic clocks in the Global Positioning System. The GPS-MSG quartz crystal master clock is continuously phase controlled to accurately track the time from the GPS satellites.
GPS-MTG2 GPS- Based "Master" SMPTE Time Code Generator
GPS- Based "Master" SMPTE Time Code Generator

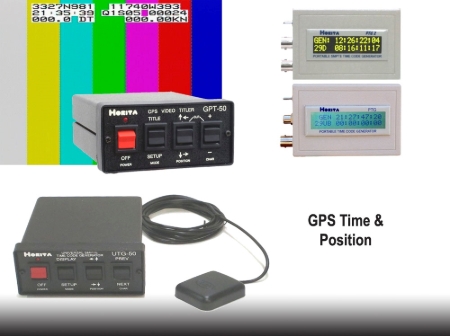

GPT-50 GPS Video Titler/Captioner
The GPT-50 GPS Video Titler adds real-time GPS data to SD analog composite video for recording or viewing. The video output from the GPT-50 is the same as the video input plus a caption of GPS position and other data, depending on input code format. The GPT-50 works with NTSC RS-170A or 625/50 SD analog composite video and RS-232 or RS-422 serial inputs, in several selectable formats. You can select from a total of 12 GPS input code formats.
MDD-100 Time Code Alphanumeric Date LED Display
The MDD-100 is a studio date display which reads SMPTE time code and provides either a month/day/year, or day-of-week/month/day alphanumeric date readout.
MTD-100 Time Code Time/Date LED Display
The MTD-100 is a studio time/date display which reads SMPTE time code and provides either hours, minutes, and seconds time readout, or month, day, and year date readout.
PG-2100 Portable Mini Time Code Generator
The PG-2100 is an inexpensive palm-sized SMPTE time code generator intended for field use in multi-camera situations when its desirable (or necessary) for each tape to have the exact same time code for precise image matching during post production.
PTG Portable Time Code Generator with 2 Line LCD
The PTG is a palm-sized SMPTE time code generator/reader that is simple to setup and operate and features a large 2-line liquid crystal display (LCD) readout for time code, user bits, and setup information. The PTG is an ideal generator for use with video recorders in multi camera situations where it is necessary for each recording to have the same time code for precise time and image matching during post production. These situations may include sporting events, games, concerts, automobile, aircraft, and boating events, parades, weddings, etc.
PTG2 Portable Time Code Generator with 2 Line OLED Display
The PTG2 is a palm-sized SMPTE time code generator/reader that is simple to setup and operate and features a large 2-line OLED display readout for time code, user bits, and setup information. The PTG2 is an ideal generator for use with video recorders in multi camera situations where it is necessary for each recording to have the same time code for precise time and image matching during post production. These situations may include sporting events, games, concerts, automobile, aircraft, and boating events, parades, weddings, etc.
TVC-50 Time Code Video Clock
The TVC-50 reads SMPTE LTC time code and provides a display overlay of time and date onto SD NTSC or PAL analog composite video based on the time and user bit value and date from an internal clock/calendar. The TVC-50 provides numerous time and date display formats and is an ideal video time/date display device for use with the HORITA UTG-50 or GPS-MTG2 master SMPTE time code generator.

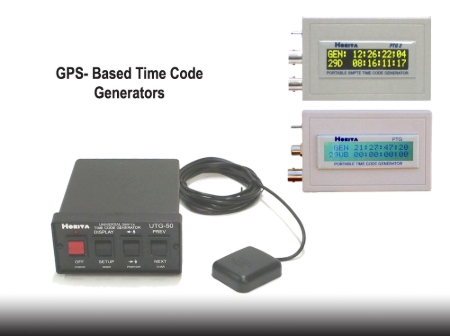

UTG-50 Universal SMPTE Time Code Generator
The UTG-50 is a multi-frame-rate SMPTE time code generator with an internal GPS receiver. The UTG-50 is truly universal and can generate at frame rates of 23.976, 24, 25, 29.97 drop/non-drop frame, or 30 FPS (Frames-Per-Second). The UTG-50 is designed to provide SMPTE time code that represents accurate “real time” time and date. The SMPTE time code time value can be preset and locked to GPS data via an internal GPS receiver, to an internal real-time clock/calendar chip, or to an external time code input.
VDA-50 Video Distribution Amplifier
The VDA-50 consists of two or three separate high performance SD RS-170A or PAL 625/50 analog composite video distribution amplifiers with user selectable jumpers on the PCB that allow it to be configured for various multiple or single video/pulse DA applications.
VG-50 VITC Time Code Generator
The VG-50 is a small, desktop sized combination SMPTE VITC time code generator and LTC-to-VITC time code translator. It's operates with SD analog composite video and is ideal for use to add VITC to a copy of an analog video recording or to add VITC time code to a blackburst reference signal. It has an "On Screen" display of either the time code or the user bits (or OFF) and the display also has a "Phase Meter" which shows the relationship between a SMPTE LTC time code input and the associated video input.
