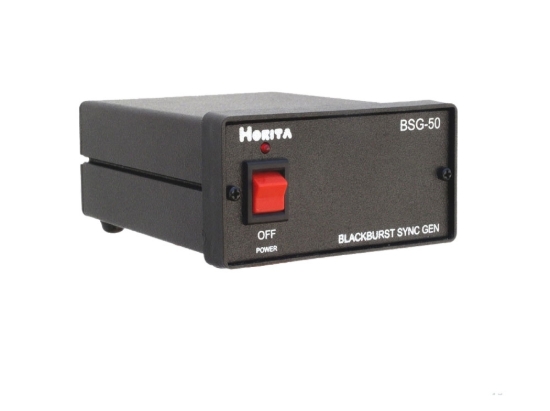

BSG-50 Blackburst, Sync Pulse, & Audio Tone Generator

The BSG-50 provides an economical means for generating the most common SD analog composite video reference timing signals required to operate various SD analog composite video switchers, effects generators, VTRs/VCRs, cameras, video edit controllers, and other professional video equipment.
Ships In: 7-14 days
*
*
$349.00

The BSG-50 provides an economical means for generating the most common SD analog composite video reference timing signals required to operate various SD analog composite video switchers, effects generators, VTRs/VCRs, cameras, video edit controllers, and other professional video equipment.

  • 6 BNC outputs on Desktop model, 8 BNC outputs on Rackmount and Short Rack models.
  • Choose any output mix from 6 blackburst, 4 sync, and 2 subcarrier.
  • Output signals are easily configurable to meet specific user/equipment needs.
  • Each video output signal is individually settable as composite sync, composite blanking, H drive or V drive. Burst flag is also available.
  • Separate buffer for each output provides maximum signal isolation.
  • Adjustments provided for setup, sync, and burst levels and SC/H phasing.
  • 1Khz, OdB sine wave audio tone reference output (unbalanced).
  • Available in 30-frame format.
  • Available in NTSC RS-170A and PAL 625/50 models
  • Rugged aluminum desktop enclosure measures 1.75"high, 4.7"long, 3.8"wide.
  • Also available in standard 19" Rackmount and Horita 7.5" "Short Rack" packages.
