The PG-2100 is an inexpensive palm-sized SMPTE time code generator intended for field use in multi-camera situations when its desirable (or necessary) for each tape to have the exact same time code for precise image matching during post production.
The palm-sized PR-232 is a SMPTE time code reader that is powered from the PC serial port and reads and translates SMPTE time code into standard RS-232 serial data. Included is the HORITA PC-LOG™ time code based logging program and the MTG-TIME program which locks your PC time and date to SMPTE time code time and date.
The PTG is a palm-sized SMPTE time code generator/reader that is simple to setup and operate and features a large 2-line liquid crystal display (LCD) readout for time code, user bits, and setup information. The PTG is an ideal generator for use with video recorders in multi camera situations where it is necessary for each recording to have the same time code for precise time and image matching during post production. These situations may include sporting events, games, concerts, automobile, aircraft, and boating events, parades, weddings, etc.
The PTG2 is a palm-sized SMPTE time code generator/reader that is simple to setup and operate and features a large 2-line OLED display readout for time code, user bits, and setup information. The PTG2 is an ideal generator for use with video recorders in multi camera situations where it is necessary for each recording to have the same time code for precise time and image matching during post production. These situations may include sporting events, games, concerts, automobile, aircraft, and boating events, parades, weddings, etc.
The award winning PTR reads SMPTE/EBU time code and displays the time code and/ or user bit data on a 2-line LCD display. "Store" and "Recall" functions allow quick and easy capture and review of up to 50 time code events. Stored time code and/ or user bit numbers can be sent as RS-232 serial data for input to a computer running the included Horita PTR-LOG program for Windows. The PTR-LOG program receives the stored time codes from the PTR and allows the user to add comments and then save as text or comma delimited files.
The Horita RLT-50 connects to the RS-422 9-pin "remote" connector available on most professional video VCR, VTR, disk, and solid state record/playback devices, and translates the RS-422 time code information into standard SMPTE Longitudinal Time Code (LTC). The RLT-50 operates with SD NTSC RS-170A or PAL 625/50 analog composite video and auto detects the video frame rate and outputs the correct 25 FPS or 29.97 FPS drop frame time code. It can also generate 24 FPS time code if the input video frame rate is at 24 FPS.

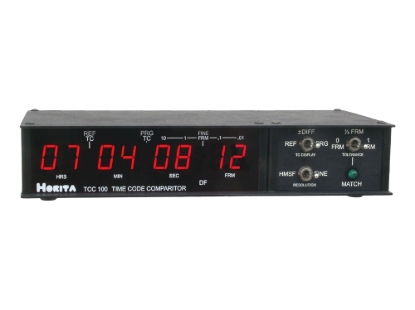

The TCC-100 is a dual input time code reader that compares two LTC inputs and displays their time difference on an LED display. The TCC-100 can be used to monitor or verify proper operation of various time code equipment, or simply display the time offset between two time code sources.
The TCP-50 is a universal SMPTE longitudinal time code processor that provides a variety of needed time code processing functions to keep up with the changes and requirements of dealing with multi format longitudinal time code.
The TG-50 is a basic SMPTE time code generator/reader for generating time code and for making time code "window dub" copies of video recordings. It is very easy to operate and is available in both desktop and rack mount packaging. The TG-50 works with SD analog composite video systems and is available in NTSC or PAL models.
The TR-100 is a SMPTE time code reader featuring an adjustable brightness 0.8 inch LED display. The brightness control allows comfortable use in bright light or in a dimly lit studio, while the 0.8" character height is good for up close or across the room viewing. The TR-100 also translates LTC time code into MIDI Time Code (MTC) for use in the audio/video workshop. The TR-100 controls are located in the back for an uncluttered display of the time code value.
The TRG-100 is a multi-frame rate SMPTE time code reader/generator with an 8 character red LED display suitable for installation in a studio, video production room, large or small editing suite or in a laboratory or test situation. It can both read and generate time code for SD and HD video frame rates and its small desktop size lets it sit conveniently on a desk top, or be rack or wall mounted. The time code reader can discern between 23.976 and 24 FPS (Frames-Per-Second) time code and between 29.97 and 30 FPS time code and displays the true frame rate. Operation is very simple and is controlled from four front panel switches.
